Fresh New Look. Unleash Every Music Detail.
The ZEN DAC 3 serves as your gateway to the world of high-resolution music, offering support for sample rates of up to 768kHz. This future-proof feature ensures full compatibility with all music formats available on streaming platforms, bringing you the best in sound quality.
Equipped with a built-in headphone amplifier and the versatility to function both as a DAC and a DAC/Pre, this all-encompassing device is the only piece of equipment you’ll need on your desk. It seamlessly connects to headphones, preamplifiers, integrated amplifiers, or active speakers, offering a comprehensive audio solution for home and office.
Refined to Perfection.
The acclaimed ZEN DAC series has garnered numerous awards, including being named WHAT Hi-Fi?’s Best DAC under £200 for four consecutive years.
The ZEN DAC 3 continues its legendary status by doubling its high-resolution support up to 768kHz, DSD512, and MQA decoding capabilities.

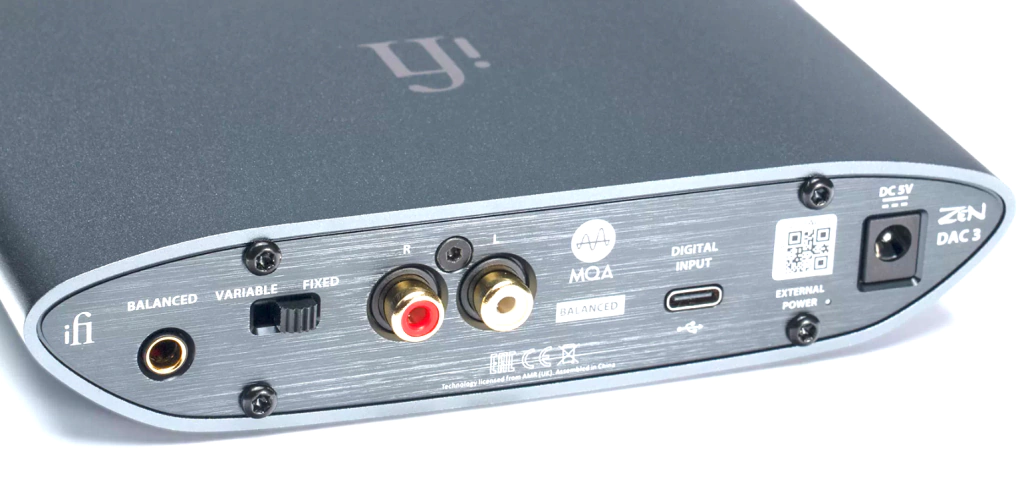

The USB-C connectivity streamlines cable management and provides USB input overvoltage protection, safeguarding it against potential harm. Moreover, a significant reduction in DC offset minimises audio clicks when adjusting settings. These improvements propel the ZEN DAC 3 to new heights of audio excellence.
Input USB Type-C
Game Console Compatibility SONY PS5 and Nintendo Switch
“SONY” is registered trademark or trademark of Sony Group Corporation.
“PS5” is registered trademark or trademark of Sony Interactive Entertainment Inc.
Nintendo Switch™ is trademark of Nintendo.
Formats PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz)
DSD (512/256/128/64)
DXD (768/705.6/384/352.8kHz)
MQA (Decoder)
DAC Bit-Perfect DSD & DXD DAC by Burr Brown
Line Output Section
Output Power
Balanced 4.4mm 2V / 6.2V max. (variable); 4.2V fixed
Single-Ended RCA 1V / 3.3V max. (variable); 2.1V fixed
Output Impedance Balanced 4.4mm ≤200Ω; Single-Ended RCA ≤100Ω
SNR ≥ 113dBA @ 0dBFS
DNR ≥ 113dBA @ 0dBFS
THD+N Balanced 4.4mm <0.0015% @ 0dBFS; Single-Ended RCA <0.003% @ 0dBFS
Headphone Output Section
Max.^ Output Power
Balanced 4.4mm >70mW @ 600Ω; >300mW @ 32Ω
Single-Ended 6.35mm >18mW @ 600Ω; >210mW @ 32Ω
RMS Output Power
Balanced 4.4mm >390mW @ 64Ω
Single-Ended 6.35mm >210mW @ 32Ω
Output impedance ≤1Ω
SNR ≥ 109dBA @ 0dBFS (6.2V 4.4mm / 3.3V 6.35mm)
DNR ≥ 109dBA @ 0dBFS (6.2V 4.4mm / 3.3V 6.35mm)
THD+N Balanced 4.4mm <0.005% (2V @ 600 Ω); Single-Ended 6.35mm <0.013% (1.27V @ 32Ω)
General
Frequency Response 5Hz – 90kHz (±3dB)
Power supply requirement USB-C or DC 5V/0.5A (centre +ve)
Power consumption No Signal ~0.5W; Max Signal ~2.5W
Dimensions 158 x 115 x 35mm (6.2” x 4.6” x 1.4”)
Net weight 456g (1.0 lbs)
Limited Warranty 12 months*
*12 months typical or as permitted / required by local resell laws.
*Specifications are subject to change without Notice.
